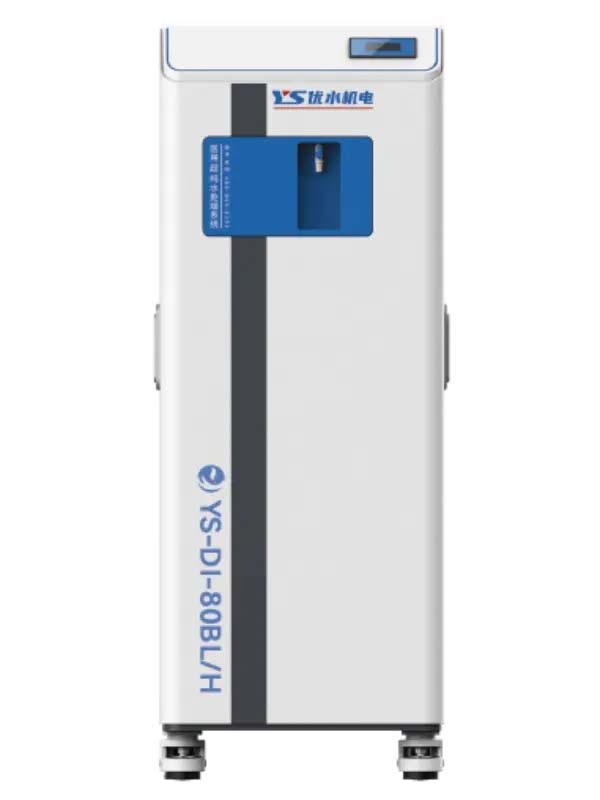

80L/H Fully Automatic Clinical Laboratory Ultrapure Water System

• Guaranteed High Purity: Achieves consistent resistivity of 15-18 MΩ·cm, ensuring compliance with the strictest lab standards.

• Built for the Lab: Specifically designed for clinical analyzers and sensitive experiments, providing reliable water for error-free results.

• Effortless Operation: Features a fully automatic start/stop cycle and a built-in water tank for continuous, hands-off water supply.

• Advanced IoT Connectivity: Monitor system status and water quality remotely for enhanced operational control and predictive maintenance.

• Compact & Robust Design: Engineered with high-quality brand components for durability in a space-saving footprint.

Ensure Uncompromising Precision in Every Test with Our 80L/H Fully Automatic Clinical Ultrapure Water System.

In the demanding environments of clinical diagnostics, research laboratories, and high-precision manufacturing, the quality of your water is a fundamental variable that can directly impact the integrity of your results. The YS-DI-80AL/H Fully Automatic Clinical Testing Ultrapure Water Machine is engineered to eliminate water quality as a source of error. This advanced water supply equipment delivers a consistent, high-volume flow of ultrapure water that meets and exceeds the rigorous requirements of international standards, including the Chinese laboratory first-class standard GB/T 6682-2008. It is the definitive solution for laboratories that will not compromise on accuracy, reliability, or operational efficiency.

This system is not a general-purpose purifier; it is a specialized tool built to support the most sensitive instruments and procedures. Its superior water quality makes it an ideal pure water source for a wide range of critical applications. In clinical settings, it provides the flawless water required for fully automatic biochemical luminescent immune equipment, ensuring that diagnostic tests are not affected by water-borne contaminants. For analytical scientists, it is the perfect choice for atomic absorption and fluorescence spectrometry, where even trace ions can cause significant interference. Furthermore, its high purity is essential for high-precision electrochemical configurations, battery cell research, chip fabrication, and constant quantitative analysis in pharmaceutical development. By integrating the YS-DI-80AL/H, you are investing in the foundational quality of your entire operational workflow.

The core promise of the YS-DI-80AL/H is the delivery of water of the highest chemical and particulate purity. The system's performance is quantified through multiple, stringent parameters. It produces water with an electrical resistivity of 15-18 MΩ·cm at 25°C, a direct measure of its extremely low ion content. This correlates to an exceptionally low conductivity of 0.005 mS/m. The water's purity is further confirmed by its near-zero absorbency at 254nm, indicating minimal organic impurities. Critical for many assays, the soluble silicon content is kept below 0.01 mg/L (as SiO2), and the oxidizable substance content is less than 0.08 mg/L. The system boasts an impressive overall ion removal rate of 99.6%, guaranteed by a reverse osmosis membrane with a 99.99% desalination rate, ensuring that your baseline is as pure as technologically possible.

We understand that a water purification system must be a reliable partner in your lab, not a source of complication. The YS-DI-80AL/H features a robust and streamlined single-stage RO design, coupled with a built-in water tank, to provide a stable and ready-to-use water supply. Its fully automatic operation means it starts and stops based on demand, saving energy and reducing wear-and-tear. The system is designed for easy installation, requiring only a standard water connection (with a minimum pressure of 0.2MPa), a power outlet (AC220V), and incoming water with TDS less than 150ppm. With a compact footprint of 51x49x142 cm and a low rated power of 0.3kW, it integrates efficiently into any lab space without demanding excessive utilities.

Moving beyond basic functionality, the YS-DI-80AL/H incorporates features that align with the future of smart laboratories. Its elegant appearance is matched by its intelligent design, which includes Internet of Things (IoT) capabilities. This allows for remote monitoring and management, giving you real-time insights into water quality and system performance from your desk or mobile device. Built with premium brand equipment accessories and backed by independent intellectual property rights, this system is a testament to superior engineering and quality assurance. It is more than just equipment; it is a critical piece of infrastructure that safeguards your research, enhances your productivity, and supports the reputation of your laboratory for delivering unequivocally precise and reliable results.

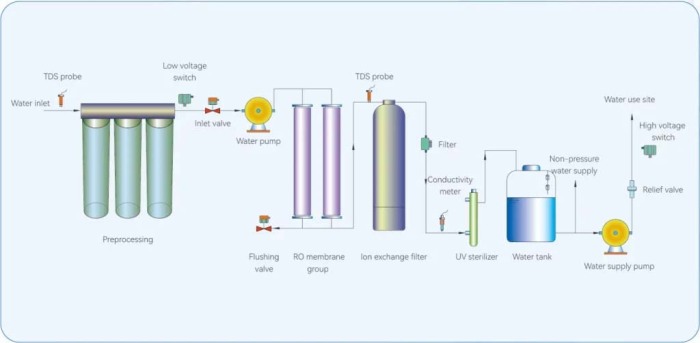

EQUIPMENT WORKFLOW DIAGRAM

EQUIPMENT PARAMETER INFORMATION

EQUIPMENT CHARACTERISTICS AND ADVANTAGES
