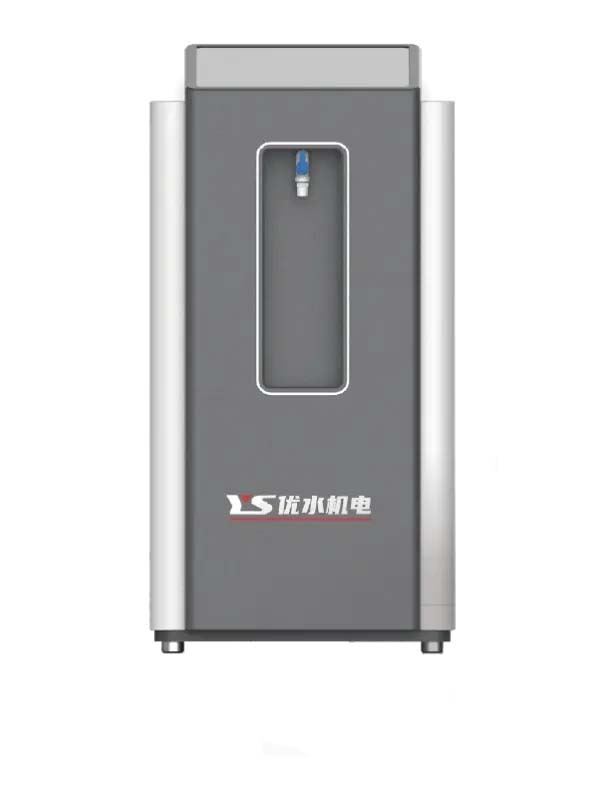

10-30L/H Medical Grade Purified Water System

• Guaranteed Purity: Produces Type I water with a consistent resistivity of 15-18 MΩ·cm.

• Regulatory Compliance: Meets the stringent first-class standard of Chinese Lab GB/T 6682-2008.

• Built-in Efficiency: Integrated water tank and single-stage RO system for a compact, ready-to-use setup.

• Superior Filtration: Achieves a 99.6% ion removal rate for reliable, contaminant-free water.

• Smart Automation: Features automatic start and stop for effortless operation and resource conservation.

• Proven Performance: Utilizes high-quality brand components for long-term stability and low maintenance.

In the demanding environments of clinical testing, research, and high-precision industrial processes, the quality of your water is a fundamental variable that can directly impact the integrity of your results. The YS-DI-(10-30)AL/H Series Medical Ultra-Pure Water System is engineered to eliminate water quality as a source of uncertainty. This robust, reliable, and intelligent purification machine is your dedicated source for Grade 1 purified water, ensuring that every test, analysis, and application is supported by water of the highest purity.

Our system is meticulously designed to comply with the first-class standard of the Chinese laboratory standard GB/T 6682-2008, a testament to its capability to produce water for the most critical analytical procedures. By integrating a powerful single-stage Reverse Osmosis (RO) system with a built-in purification module, the YS-DI system delivers a continuous and on-demand supply of ultra-pure water with a resistivity of 15-18 MΩ·cm at 25°C. This exceptional purity is non-negotiable for sensitive equipment and precise experiments, safeguarding your operations against ionic contamination.

At the heart of the YS-DI system lies an advanced single-stage Reverse Osmosis mechanism. This technology is critical for the primary removal of a vast majority of ions, microorganisms, and organic contaminants. The RO membrane boasts an exceptional 99.99% desalination rate, forming the foundational stage of purification. This process is so effective that it achieves a total system ion removal rate of 99.6%, ensuring that the water entering the final stage is of exceptionally high quality.

The system's performance is rigorously measured and guaranteed. Beyond high resistivity, the produced water exhibits virtually zero absorbency at 254nm, indicating an extremely low level of organic impurities. Key parameters like soluble silicon content are kept below 0.01 mg/L, oxidizable substances below 0.08 mg/L, and evaporation residues at a minimal 0.6 mg/L. This comprehensive purity profile makes the YS-DI system an indispensable tool for applications where even trace contaminants can lead to significant errors or equipment malfunction.

Understanding the space constraints and workflow requirements of modern laboratories, the YS-DI system is designed with a compact footprint (30x47x98cm) and a built-in water tank. This all-in-one design eliminates the need for complex external plumbing and saves valuable bench or floor space. Installation is straightforward, allowing you to get the system up and running with minimal downtime.

Operational simplicity is a key feature. The system is equipped with an automatic start and stop function, which intelligently manages water production based on usage, enhancing energy efficiency and extending the system's lifespan. It operates on a safe 24V electrical circuit and is built with reliable, brand-name accessories to ensure durability and consistent performance year after year. With a modest rated power of 0.15-0.2 kW, it is an energy-conscious choice for continuous operation.

The YS-DI Ultra-Pure Water System is versatile and built to serve a wide range of critical applications across multiple sectors:

• Clinical & Medical Laboratories: Ideal for supplying water to fully automatic biochemical analyzers, luminescent immune equipment, clinical test systems, and other diagnostic instruments.

• Research & Development: Perfect for Atomic Absorption Spectrophotometry (AAS), atomic fluorescence, and general laboratory reagent preparation where high-purity water is mandatory.

• High-Precision Manufacturing: Essential for producing water for high-precision electrochemical configurations, battery cell and storage battery production, and chip manufacturing processes.

• Pharmaceutical & Chemical Analysis: Provides the pure water required for constant quantitative analysis, medicine formulation, and other sensitive chemical applications.

Why Choose the YS-DI Ultra-Pure Water System?

By selecting the YS-DI system, you are investing in more than just a water purifier; you are investing in peace of mind. You ensure the validity of your data, the protection of your sensitive instrumentation, and the efficiency of your daily operations. It represents a fusion of robust engineering, intelligent design, and a commitment to meeting international standards.

Move forward with confidence, knowing your pure water needs are met with a system designed for excellence. Contact us today to find the perfect YS-DI model for your specific requirements and take the first step towards flawless, reliable, and high-purity water production.

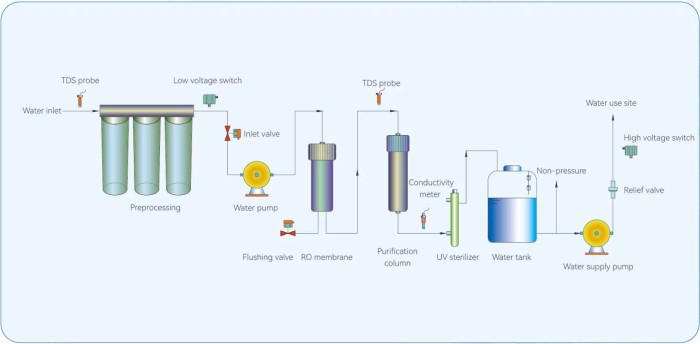

EQUIPMENT WORK FLOW CHART

EOUIPMENT PARAMETERINFORMATION

EOUIPMENT CHARACTERISTICS AND ADVANTAGES
