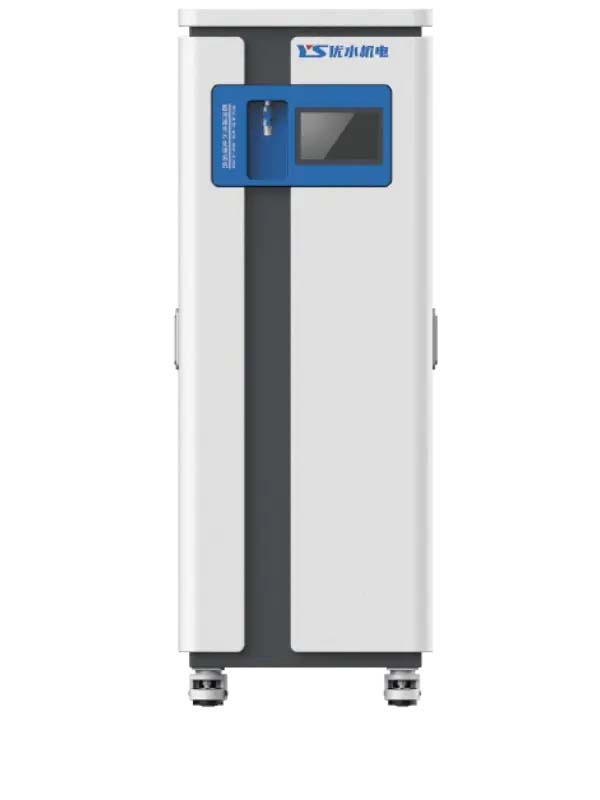

150L/H Fully Automatic Ultra-Pure Water System for Laboratory Use

• Fully automatic operation with intelligent start/stop system

• Built-in water tank for consistent supply

• Single-stage RO technology with 99% desalination rate

• Complies with Chinese laboratory GB/T 6682-2008 first-class standard

• Compact design (54*56*148cm) with modern appearance

• IoT capability for remote monitoring

• Multiple application scenarios from medical to industrial use

• Safe operation with 24V safety voltage

• High purity output with resistivity 15-18 MΩ·cm

• Complete ion removal rate of 99.6%

The YS-D1-150AL/H series represents the pinnacle of ultra-pure water treatment technology, specifically engineered for demanding laboratory and medical environments. This fully automatic ultra-pure water machine delivers exceptional water purity with a consistent output of 150 liters per hour, making it an ideal solution for facilities requiring high-volume, high-quality water production.

At the core of this system lies an advanced single-stage reverse osmosis (RO) technology that ensures superior water purification. The equipment features a built-in water tank that maintains constant water availability while ensuring stable water quality throughout operation. What sets this system apart is its compliance with the stringent Chinese laboratory GB/T 6682-2008 first-class standard, guaranteeing that the produced water meets the highest quality requirements for scientific and medical applications.

The water quality parameters demonstrate the system's exceptional performance. With electrical resistivity reaching 15-18 MΩ·cm at 25°C and electrical conductivity maintained at 0.005 mS/m, this system consistently delivers ultra-pure water that exceeds industry standards. The complete absence of absorbency at 254nm with 1cm optical distance, combined with minimal soluble silicon content (<0.01 mg/L as SiO2) and oxidizable substance content (<0.08 mg/L in O), ensures water purity that meets the most demanding laboratory requirements. The evaporation residue content at 105°C±2°C remains at a remarkably low 0.6 mg/L, while the membrane desalination rate achieves an impressive 99% efficiency.

Designed with both functionality and aesthetics in mind, the YS-D1-150AL/H features a modern, compact design measuring 54*56*148cm, making it suitable for various laboratory configurations. The system operates with incoming water pressure requirements of ≥0.2MPa and handles water temperatures up to 150ppm. The power supply configuration of AC220V±10% 50HZ, complemented by a 24V safety voltage, ensures both reliable operation and user safety. With a rated power consumption of only 0.7kw, the system offers energy-efficient performance without compromising on output quality.

The system's application scope encompasses diverse fields, including atomic absorption, fluorescence, general laboratory, and clinical laboratory use. It serves as an ideal water source for fully automatic biochemical and luminescent immune equipment, providing the consistent water quality necessary for accurate analytical results. The system also meets the requirements for high-precision electrochemical configuration water, battery cells, storage battery, and chip water applications. Furthermore, it provides reliable water supply for constant quantitative analysis, pharmaceutical manufacturing, and medical applications where water purity is critical to process integrity.

Operational features include fully automatic start and stop functionality, eliminating the need for manual intervention and ensuring consistent performance. The system incorporates brand equipment accessories and boasts independent intellectual property rights, reflecting its innovative design and reliable construction. Installation is straightforward, requiring minimal technical expertise, while the integrated Internet of Things capability enables remote monitoring and control, enhancing operational convenience.

The system's advantages extend beyond its technical specifications. Its beautiful appearance complements modern laboratory environments, while the stable water quality ensures reproducible results in sensitive applications. The high water purity levels maintained by the system support critical processes where even minimal impurities could compromise outcomes. The equipment's robust construction, combined with its intelligent design features, provides laboratories with a reliable, long-term water purification solution that reduces maintenance requirements and operational costs.

For research institutions, medical facilities, and industrial operations requiring consistent ultra-pure water, the YS-D1-150AL/H offers a comprehensive solution that combines advanced purification technology with user-friendly operation. The system's ability to maintain stringent water quality standards while delivering substantial output makes it particularly valuable for high-throughput environments where both quantity and quality are essential.

The integration of IoT technology represents a significant advancement in water purification systems, allowing for real-time monitoring of system performance, water quality parameters, and maintenance needs. This connectivity enables proactive maintenance scheduling and remote troubleshooting, minimizing downtime and ensuring continuous operation. The system's automatic start and stop capabilities further enhance its efficiency, conserving energy and resources when not in active use.

With its combination of advanced purification technology, robust construction, intelligent features, and comprehensive safety measures, the YS-D1-150AL/H series stands as a premier choice for organizations seeking reliable, high-volume ultra-pure water production. The system's compliance with international standards, coupled with its versatile application range, makes it suitable for global deployment across various sectors including healthcare, research, pharmaceuticals, and advanced manufacturing.

The equipment's design prioritizes not only performance but also user safety and environmental considerations. The 24V safety voltage ensures protection for operators, while the efficient energy consumption contributes to reduced environmental impact. The system's high removal rate of ions and contaminants ensures that it meets the most stringent environmental and regulatory requirements for water purity in sensitive applications.

In conclusion, the YS-D1-150AL/H series medical ultra-pure water treatment system represents a sophisticated, reliable, and efficient solution for organizations requiring high-quality ultra-pure water. Its comprehensive feature set, combined with robust performance characteristics and advanced technological integration, positions it as an industry leader in water purification systems for professional and industrial applications.

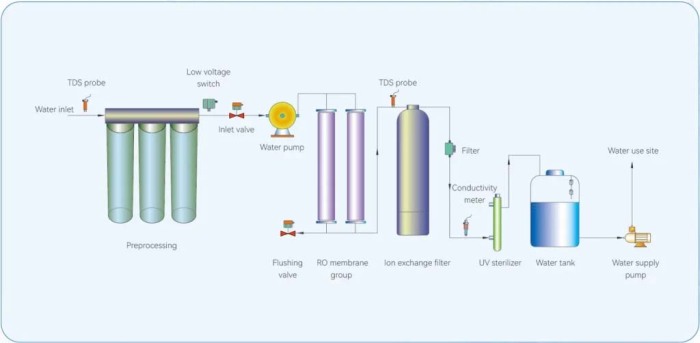

EQUIPMENT WORKFLOW DIAGRAM

EQUIPMENT PARAMETER INFORMATION

EQUIPMENT CHARACTERISTICS AND ADVANTAGES
