Built-in water tank ensures stable water supply and purity
Produces ultrapure water with resistivity of 1518 Mcm 25C
Complies with GB/T 6682-2008 First-Class Laboratory Water Standard
High ion removal rate of 99.6% for maximum purity
Compact modular design for space-saving installation
Easy operation with digital resistivity meter and clear display
Ideal for medical, laboratory, and pharmaceutical applications
Low maintenance, energy-efficient single-stage RO system
Product Summary (≤90 characters)
The YS-D-(1030)AL/H Series Medical Ultrapure Water Purification System represents the next generation of compact, efficient, and high-performance water purification solutions designed specifically for medical and laboratory use. Built around a single-stage reverse osmosis (RO) system, this model delivers consistent and reliable ultrapure water that fully complies with the Chinese laboratory water standard GB/T 6682-2008 (First-Class).
Constructed with a durable and hygienic design, the YS-D system features an integrated water tank that ensures constant water availability while maintaining stable water quality. The advanced RO membrane effectively removes dissolved ions, organic compounds, and bacteria from the feed water, achieving an impressive ion removal rate of 99.6%. The resulting ultrapure water exhibits a resistivity of 1518 Mcm at 25C, ensuring it meets the strictest demands of analytical and clinical applications.
This system is ideal for use in medical and biochemical laboratories, hospitals, and pharmaceutical facilities where water purity is essential for accurate test results and sterile environments. It is widely used for preparing reagents, rinsing glassware, feeding autoclaves, supporting biochemical analyzers, and conducting high-precision experiments that demand ultrapure water quality.
The built-in resistivity meter provides real-time monitoring of water purity, ensuring users can track system performance easily. The intuitive display and user-friendly control interface make operation simple and efficient, reducing downtime and maintenance costs. The systems compact modular construction allows for flexible installation even in limited spaces, while its robust internal components ensure long-term reliability and consistent output.
Each YS-D-(1030)AL/H system undergoes strict factory calibration and quality testing to guarantee compliance with international laboratory standards. Its single-stage RO process not only minimizes energy consumption but also simplifies maintenance compared to multi-stage systems, providing a cost-effective and environmentally friendly solution for medical facilities.
Whether your goal is to ensure the purity of reagents, maintain contamination-free testing environments, or meet regulatory requirements for medical-grade water, the YS-D-(1030)AL/H series provides the reliability, accuracy, and convenience that modern laboratories demand. With precision engineering, exceptional ion removal efficiency, and seamless integration into laboratory workflows, this system is a dependable choice for professionals who cannot compromise on water quality.

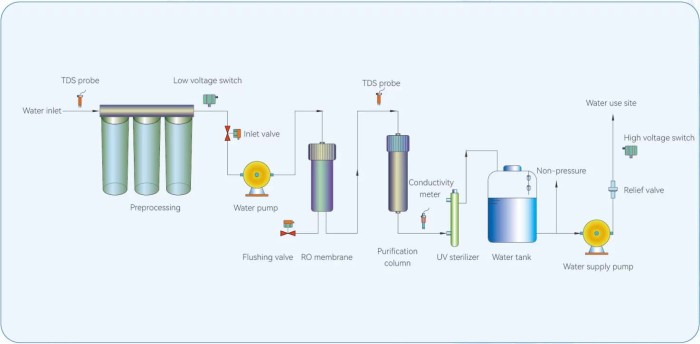

EQUIPMENT WORK FLOW CHART
EOUIPMENT PARAMETERINFORMATION
| EQUIPMENT PARAMETERS AND RELEVANT REQUIREMENTS |
| Equipment model | YS-DI-(10-30)AL/H | Water quality standards | GB/T 6682-2008 |
| Water output |
| 10L-30L/H |
|
| Quality of water production |
| Electrical resistivity (25° C), MQ· cm | ≥15-18MQ·cm |
| Electrical conductivity(25℃), mS/m | 0.005 |
| Absorbency (254nm, 1cm optical distance) | 0 |
| Soluble silicon content (as Si2), mg/L | <0.01 |
| Oxidizable substance content (in O), mg/L | <0.08 |
| Evaporation residue content 105°℃±2°℃, mg/L | 0.6 |
| Membrane desalination rate | 99.99%. |
| Additional information |
| Equipment size | 30*47*98cm |
| Influent requirements Water pressure Water temperature Power supply |
| Incoming water pressure | ≥0.2MPa |
| Water temperature | 5-45℃ |
| Power supply | AC220V±10% 50HZ, with 24V safety voltage |
| Rated power | (0.15-0.2) kw |
| Scope of application |
Atomic absorption/fluorescence/laboratory/clinical lab; Fully automatic biochemical/luminescent
immune equipment water supply; High-precision electrochemical configuration water/battery cells/storage battery/chip water; Water supply for constant quantitative analysis/medicine, etc. |
EQUIPMENT CHARACTERISTICS AND ADVANTAGES
